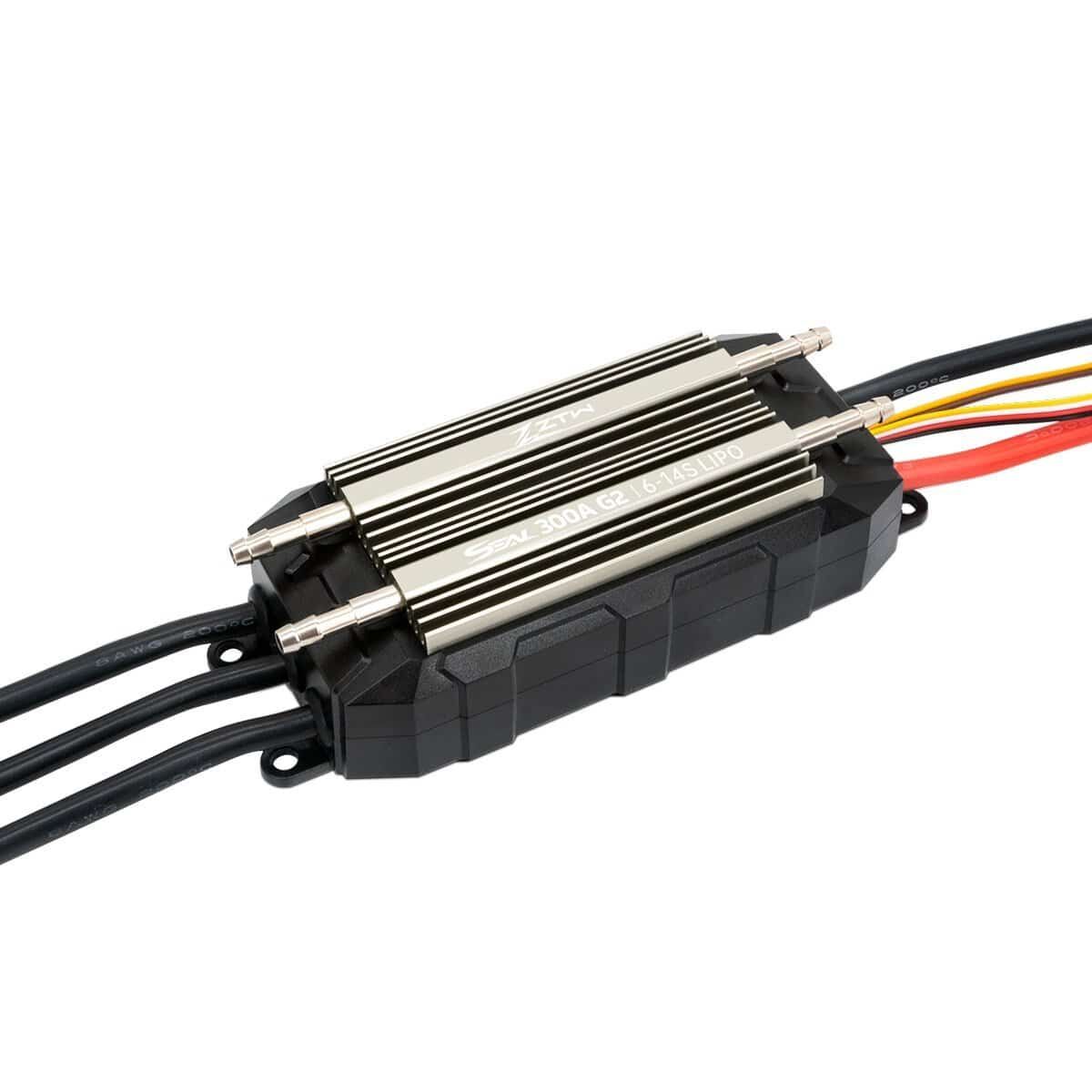

Following up on the success of the ZTW 300, ZTW has released a 32-bit version of the Seal 300. The Seal G2 comes in a new compact design that is a full 100 grams lighter, shorter, and narrower than its predecessor.
The 32-bit Microcontroller supports the “CAN protocol” for recording data. The ESC can be programmed by the optional LCD prog card or the mobile phone APP (need extra Bluetooth), and supports real-time data.
The ZTW SEAL G2 Series is designed specifically for RC Boat applications, featuring a waterproof design. The 300A ESC includes two water cooling pipes as well as customized heat sinks. However, the 300A ESC does not offer a built-in BEC, requiring an additional battery pack to operate the servo. In order to protect the boat, the ESC offers a power reduction when too hot and an optional Low Voltage Cutoff.
For more specific information, see the specs below…
Specs:
The waterproof design (rates as IP 67) allows this ESC to work in wet conditions.
Continuous Current (A): 300 Amps
Burst Current(A): XXX Amps
Voltage: 6s – 14s Lipo (18-42 NiMH)
Power Wire: 8 Gauge160mm-Red/160mm-Black
Motor Wire 8 Gauge 160mm-Black
Battery Eliminator Circuit (BEC): None, requires RX pack or BEC Eliminator Circuit.
The throttle works in both forward and reverse or you can lock out the reverse function for racing safety.
Optional programming with LCD programming card.
Case dimensions (not including wires):
Length: 130mm (5.12″)
Width: 65mm (2.56″)
Height: 38mm (1.50″)
Weight: 530g
Water fitting thread size: m6
